Education Training Drone with Three-Axis Lockable UAV Debugging Platform Featuring PID Debugging and RTK Accurate Positioning
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 169 |
|
Detail Information |
|||
| Sprayer Type: | Unmanned Aerial Vehicle (Uav) | Power Supply Input Voltage: | AC 100-220V 50-60Hz |
|---|---|---|---|
| Limit Of Motion: | X-Axis ±25°, Y-Axis ±25°, Z-Axis 150mm | Motion Direction Lock: | Three-Axis Lockable |
| Transport Package: | Box Package | Trademark: | TTA |
| Origin: | China | Production Capacity: | 10000unit/Year |
| Highlight: | Three-Axis Lockable Education Training Drone,PID Debugging UAV Debugging Platform,RTK Accurate Positioning Drone Training Toolbox |
||
Product Description
Online Platform UAV for Standardized Control Techniques and Multi-Aircraft Operations

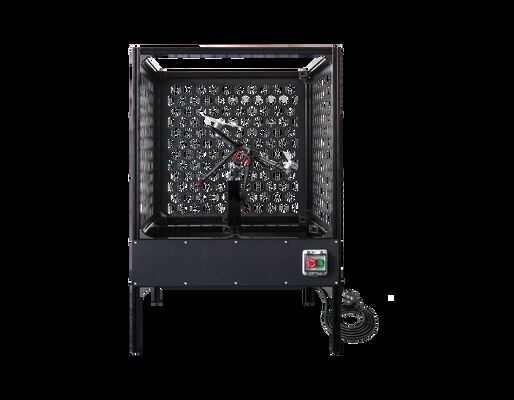

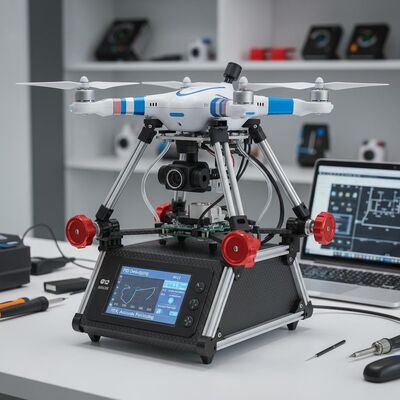

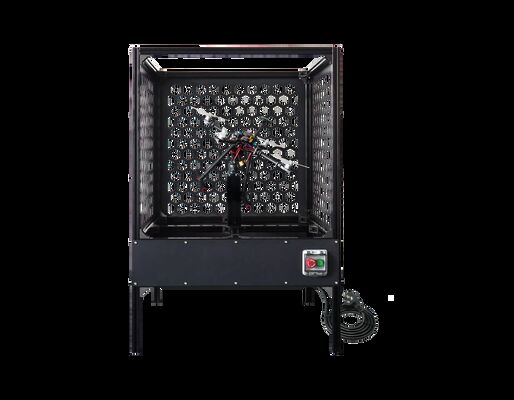

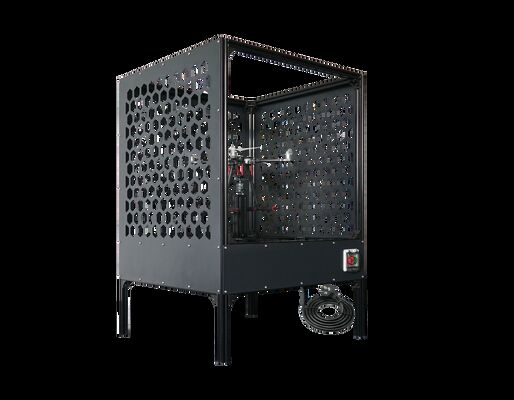

This advanced UAV platform enables comprehensive PID debugging and flight testing for small drones. Ideal for drone manufacturers, research institutions, testing facilities, and training centers, the TE55 multi-degree-of-freedom drone debugging platform delivers professional and secure testing solutions.
Supply & Delivery Information
Supply Capacity: 500 sets per month
Packaging: Packed in professional aviation case
Delivery Ports: Tianjin, Shanghai, Ningbo, Shenzhen
Technical Specifications
| Specification | Details |
|---|---|
| Outline Dimension | 800×800×1200 mm |
| Total Weight | 28 kg |
| Power Supply Input Voltage | AC 100-220V 50-60Hz |
| Limit of Motion | X-axis ±25°, Y-axis ±25°, Z-axis 150mm |
| Motion Direction Lock | Three-axis lockable |
| Supported Device Sizes | Wheelbase ≤550mm, propeller ≤12 inches, maximum height ≤200mm |
Main Features
Automatic Spraying Mode
Advanced automated spraying capabilities for precision agriculture applications.
RTK Accurate Positioning System
Accuracy: Horizontal: ±1cm + 1ppm, Vertical: ±2cm + 1ppm
Function: Ensures complete field coverage, prevents crop damage and pollution, one base station supports multiple drones
Spraying System
Double water pumps generate higher pressure (max 4L/min adjustable flow rate)
Larger inlet for faster chemical filling with no leaking
Advanced flow meter ensures precise spraying with error within 2%
Obstacle Avoidance Sensor
Front and back obstacle avoidance sensors enable automatic obstacle detection
Ground Control Station displays real-time distance from obstacles
Terrain Following Module
Enables operation on undulating crop fields, making spraying work significantly easier
FPV Camera
Real-time video monitoring for detailed drone and crop situation information
Dual LED lights support night flight operations
Cloud Service / Background Management Platform
Comprehensive management for drones and spraying records
Real-time monitoring of all drone situations
Collects data including sprayed area, location, and spraying logs
Product Images
Frequently Asked Questions
- How to fly the drones? Operating manuals and videos are provided, plus free training at our company.
- Are your drones waterproof? Yes, the drone is waterproof.
- Can your agriculture drone set routes? Yes, you can set routes and AB points on computer and mobile phone through the ground control station.
- What capacity drone do you have? We have 5kg, 10kg and 20kg payload capacities.
- How many hectares can the drone cover in one day? From 30-50 hectares, depending on the capacity.
- Can the drone spray high trees? Yes, we designed the fogger drone specifically for this purpose.
- Can the drone spray fertilizers and seeds? Yes, we designed the 20kg agriculture spreader drone for these applications.
- Does it have the FPV camera and light? Yes.
- Which flight controller do you use? We have our own flight controller.
