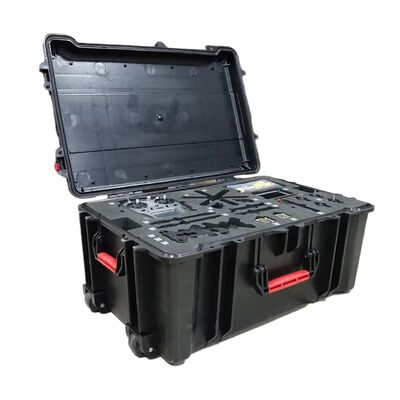

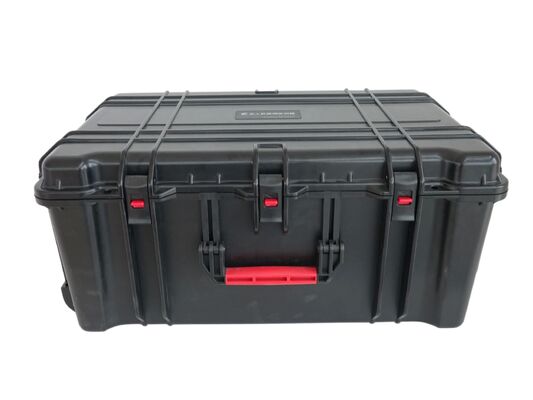

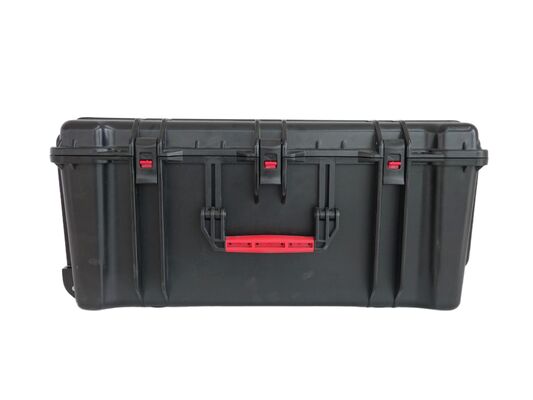

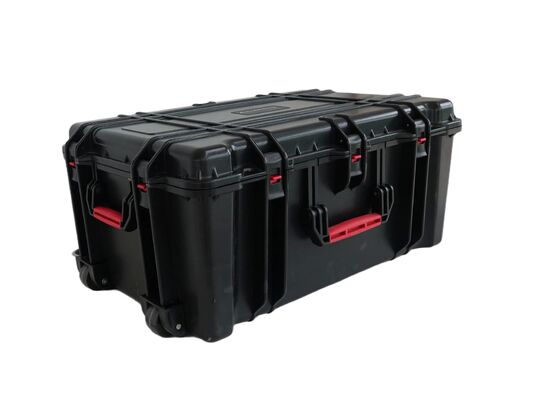

Educational Uav Toolbox for Frame, Motor, and Power Board Debugging Skills

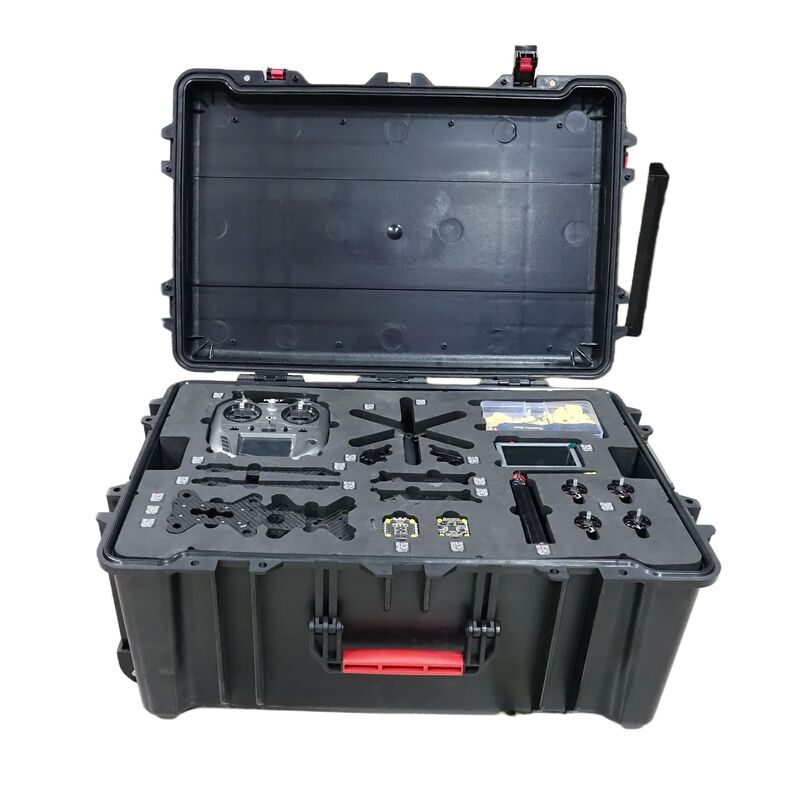

The UAV Adjustment and Training Box adopts a fully modular design with three complete system assembly solutions, serving as a core teaching platform for students to evolve from "pilots" to "technical engineers". This equipment covers the entire practical workflow from component assembly to functional adjustment, with a focus on mechanical connection skills such as frame assembly and motor fixation. It also provides training on electrical connection logic for modules including power boards, electronic regulators, receivers, and GPS, as well as system techniques like hardware calibration, channel configuration, and PID parameter tuning. This comprehensive approach significantly enhances students' assembly and debugging capability.

• Cloud service
• RTK Accurate positioning
• Flight log playback
• Flow rate control
• Multiple operation modes
• Obstacle avoidance

• Double water pumps generate bigger pressure, max 4L/min adjustable flow rate
• Larger inlet for faster chemical filling with no leaking
• Advanced flow meter ensures precise spraying within 2% error margin

Equipped with front and back obstacle avoidance sensors, the drone can automatically detect obstacles to prevent unexpected crashes and losses. The GCS displays the distance from obstacles in real-time.

Enables the drone to work efficiently on undulating crop fields, making spraying operations much easier.

Real-time video monitoring provides detailed information about the drone and crop situation. Dual LED lights support night flight operations.

Comprehensive management solution for both drones and spraying records. Supports real-time monitoring of all drone operations and collects comprehensive data including sprayed area, spraying location, spraying logs, and more.
