ALL IN ONE Compact Design UAV Debugging Platform from 0 to 1 PID Debugging
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | compact UAV debugging platform,PID debugging drone,agriculture drone PID tuning |
||
|---|---|---|---|
Product Description
The Multiple Degrees of Freedom UAV Debugging Platform is a comprehensive functional testing system specifically designed for light and micro drones, enabling precision flight control PID parameter tuning. This innovative solution addresses challenges faced by educational institutions in drone flight control instruction and PID parameter calibration training, where factors like airspace limitations, venue constraints, environmental conditions, and operational risks often lead to economic losses and safety incidents.
With its compact design, the platform can efficiently conduct flight control and debugging training for drones with a wheelbase under 550mm within a space of less than 1 square meter.
The SkyTE TE55 multi-degree-of-freedom UAV whole-machine debugging platform breaks through spatial and airspace limitations, operating in a compact space of less than 0.7 square meters. This system enables comprehensive PID debugging and flight testing for small drones.

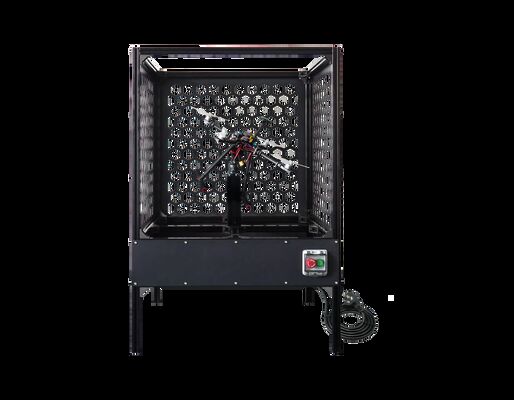

The omnidirectional gimbal with super load can make the UAV complete all directions free movement in the test platform, including take-off, landing, rolling, pitching and yawing.
Achieve rapid disassembly and assembly of drones and multi-degree-of-freedom platforms within seconds, saving teachers time during lectures and test personnel time for equipment replacement. It assists students in transitioning from PID debugging from 0 to 1.
The system provides continuous power supply for 24/7 drone flight testing, ensuring unrestricted course scheduling. It features input/output voltage protection, overcurrent, and short-circuit protection.

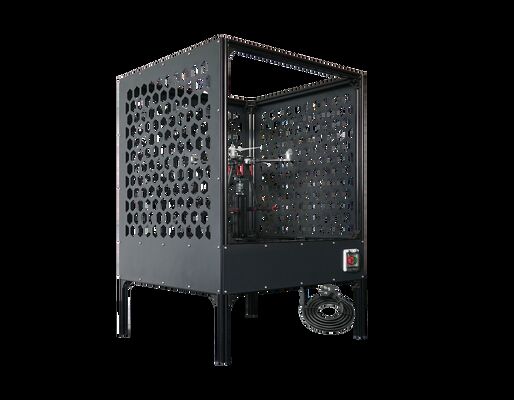

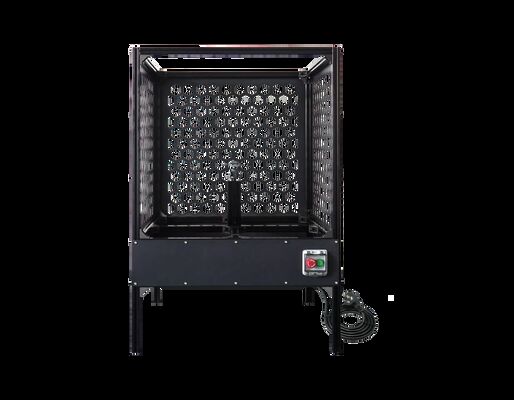

The overall structure is made of sheet metal with matte black paint, and the full protection design ensures the safety of the operators during debugging and flight testing.
| Outline Dimension | 800 * 800 * 1200 mm |
|---|---|
| Total Weight | 28 Kg |
| Power Supply Input Voltage | AC 100-220V 50-60Hz |
| Limit of Motion | X-axis ±25°, Y-axis ±25°, Z-axis 150mm |
| Motion Direction Lock | Three-axis lockable |
| Supported Device Sizes | Wheelbase ≤550mm, propeller ≤12 inches, and the maximum height from the fixed position to the aircraft's highest point ≤200mm |
