20.8kg Empty Weight Sprayer Agricultural Payload Drone with Global 30L Tank Volume
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Box Package |
| Delivery Time: | https://ttadrone.en.made-in-china.com/ |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 10000unit/Year |
|
Detail Information |
|||
| Model NO.: | M4E-G300 Pro | Power Supply: | Electric |
|---|---|---|---|
| Technics: | Screen Printing | Material: | TPU |
| Type: | Knapsack | Product Name: | Drone Sprayer |
| Model: | M4e-G300 PRO | Sprayer Type: | Unmanned Aerial Vehicle (Uav) |
| Usage: | Agriculture | Video Outgoing Inspection: | Provided |
| Tank Volume: | 30L | Empty Weight: | 20.8kg |
| Full Payload Flying Time: | 10-13min | Flying Height: | 2000m |
| Flying Speed: | 0-8m/S | Transport Package: | Box Package |
| Specification: | M4E-G300 Pro | Trademark: | TTA |
| Origin: | China | HS Code: | 880022000 |
| Supply Ability: | 10000unit/Year | After-sales Service: | Engineers Available To Service Machinery Overseas, |
| Warranty: | 1 Year | Installation: | Internal Threaded Connection |
| Liquid Contained: | Medicine, Disinfector | Spraying Shape: | Sector |
| Volume: | >500ml | Samples: | US$ 13999/Piece 1 Piece(Min.Order) | Request |
| Customization: | Available | Customized Request | ||
Product Description
Global 30L Tank Volume 20.8kg Empty Weight Sprayer Agricultural Payload Drone Spraying Agriculture Drone Using Charging Station Electric Power Supply
| Name of commodity | Image | Remarks |
4 rotors UAV |  | fuselage, arms, motors, propellers, electronic speed controllers |
Spraying equipment | | Micro pump / Flow meter / pesticide tank / nozzles/ |
Package | | Carton A Carton B Carton C |
Remote controller | | TTA Remote controller |
Camera | | FPV camera Front and Back |
Battery/2pcs included in package | | 1pc battery/flight 2 pcs in one CTN: 37.5*30*37 cm (L*W*H) G.W:22Kg |
14S Charger | | Dual channels 37.5*32.5*31.5cm(L*W*H) G.W: 13Kg |
| Assemble tools | 1 bag |
Supply Ability
Supply Ability 500set/sets per Month
Packaging & Delivery
Packaging Details: Packed in professional aviation case
Port: Tianjin, Shanghai, ningbo, shenzhen
Mode 1:
Preset the working route on GCS ,find your crop field on Google Map, the route will automatically appear. The start point,the final
point and the working direction can all be set.
Mode 2:
Import Kml file directly ,
the route will automatically appear. The start point, the final point and the working direction can all be set.

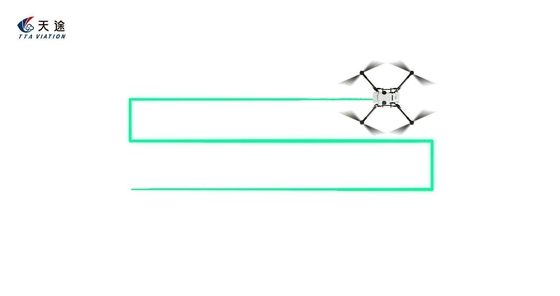

Mode 3:
Quick scanning mode:
Operator only need to set A and B point and give the drone a
direction order then the drone will fly and spray
automatically. Easy to shorten or extend the AB point distance during flying to adapt irregular shape
Preset the working route on GCS ,find your crop field on Google Map, the route will automatically appear. The start point,the final
point and the working direction can all be set.
Mode 2:
Import Kml file directly ,
the route will automatically appear. The start point, the final point and the working direction can all be set.
Mode 3:
Quick scanning mode:
Operator only need to set A and B point and give the drone a
direction order then the drone will fly and spray
automatically. Easy to shorten or extend the AB point distance during flying to adapt irregular shape
Technical data
| Model No. | M4E-G300 Pro |
| Tank Volume | 30L |
Work Efficiency | 2-3 hectare/10min 96~ 144 hectare/8 hours |
Empty Weight | 20.8KG |
Max Take Off Weight | 68.3KG |
| Flying | |
| Full payload Flying Time | 10-13min |
| Max Flying Time | ≥20min |
| Flying Speed | 0-8m/s |
| Flying Height | 2000m |
| Landing approach | Vertical take-off and landing |
| Anti-wind | <8m/s |
| Positioning | GPS&RTK |
| Spraying | |
| Spray droplet diameter | 170-265μm |
| Quantity of Nozzles | 4pcs |
| Recommend Spray Speed | 6-8m/s |
| Spray Width | 6-9M |
| Spray Height | 2-4M above crop |
| Battery | |
| Power Capacity | 30000mAh-53.2V |
| Weight | 10.5KG |
| Discharge Rate | 3C |
| IP | IP56 |
Main Features
Features of M6E-G300 Agricultural Drone UAV
Cloud service
RTK Accurate positioning
Flight log playback
Flow rate control
Multiple operation modes
Obstacle avoidance
Automatic spraying mode
RTK accurate positioning system Accuracy:
Horizontal: ± 1cm + 1ppm Vertical: ±2cm + 1ppm
Function:
Make sure the field can be fully covered.
To avoid damage neighbour crop and pollution.
One base station supports multiple drones work at same time.
Features of M6E-G300 Agricultural Drone UAV
Cloud service
RTK Accurate positioning
Flight log playback
Flow rate control
Multiple operation modes
Obstacle avoidance
Automatic spraying mode
RTK accurate positioning system Accuracy:
Horizontal: ± 1cm + 1ppm Vertical: ±2cm + 1ppm
Function:
Make sure the field can be fully covered.
To avoid damage neighbour crop and pollution.
One base station supports multiple drones work at same time.

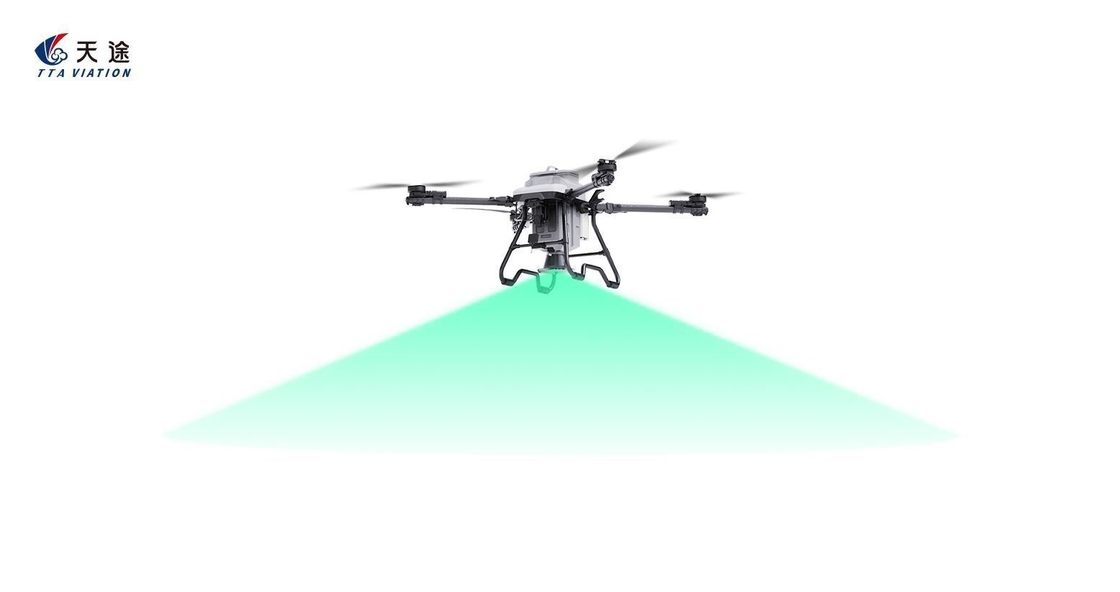

Spraying system
Terrain following module
FPV camera
Details Images.
WHY CHOOSE US?
HOT SELLING PRODUCTS
COMPANY STRENGTH
EXHIBITION DISPLAY
FAQ
Double water pumps generate bigger pressure , max 8L/min adjustable flow rate.

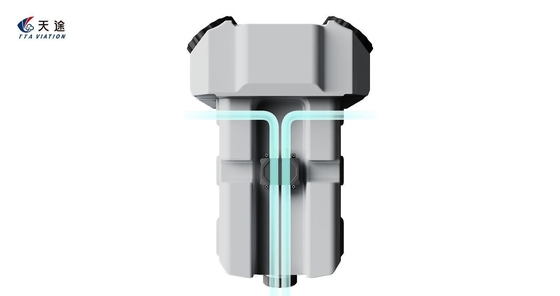

Auxiliary tank can prevent the reverse flow of water from spraying system to achieve more precise flow counting.
Obstacle avoidance sensor Equip front and back Obstacle avoidance sensor makes the drone has the ability to automatically detect obstacles to avoid unexpected crash and lose. The GCS presents the distance from the obstacles at the same time.
Terrain following module
To make the drone has the ability to work on undulating crop field and make the spraying work much easier.
FPV camera
Wide-angle FPV camera makes flying more safety !
Real time video monitoring let you know detail information of drone and your crop situation !
Dual LED light. Support night flight!
Dual LED light. Support night flight!
Details Images.
WHY CHOOSE US?
HOT SELLING PRODUCTS
COMPANY STRENGTH
EXHIBITION DISPLAY
FAQ
Q: 1.How to fly the drones?
A: There are operating manual and video to teach the operation. You can also come to our company for free training.
Q: 2.Are your drone waterproof?
A: Yes, the drone is waterproof.
Q: 3.Does your agriculture drone can set routes?
A: Yes, you can set routes and AB point on your computer and mobile phone through ground control station.
Q:4.What capacity drone do you have?
A:We have 5, 10 and 20kg payload.
Q:5.How many hectares can the drone can cover one day?
A:From 30-50 hectares, depends on the capacity.
Q:6.Can the drone spray the high trees?
A:Yes, we designed the fogger drone.
Q:7.Can the drone spray the fertilizers and seeds?
A:Yes. we designed the 20kg agriculture spreader drone.
Q:8.Does it have the FPV camera and light?
A:Yes.
Q: 9.Which flight controller do you use?
A: We have our own flight controller.
If still have some questions, please dont hesitate to contact me
