Tta FC ESC Stack Flight Controller and ESC 50af7 V2 for Fpv Uav Drone Accessories
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Box Package |
| Delivery Time: | https://ttadrone.en.made-in-china.com/ |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 10000unit/Year |
|
Detail Information |
|||
| Model NO.: | FC&ESC Stack 50AF7 V2 | Product Name: | FC&ESC Stack Flight Controller And ESC 50af7 V2 |
|---|---|---|---|
| FC&ESC Stack Net Weight: | 23G | FC&ESC Stack Input Voltage: | 2s-6s |
| Flight Control Size: | 36X36mm | Bec: | 5V/3A; 10V/2.5A |
| Software: | Blhelisuite16.7.14.9.0.3 | Transport Package: | Box Package |
| Specification: | FC&ESC Stack 50AF7 V2 | Trademark: | TTA |
| Origin: | China | HS Code: | 880022000 |
| Supply Ability: | 10000unit/Year | Certification: | ISO9001, FCC, RoHS, CE |
| Height: | Ultra High-Altitude | Operating Radius: | Remote |
| Size: | Small | Usage: | Industrial |
| Structure: | Fixed-Wing UAV | Samples: | US$ 100/Piece 1 Piece(Min.Order) | Request Sa |
| Customization: | Available | Customized Request | ||
Product Description

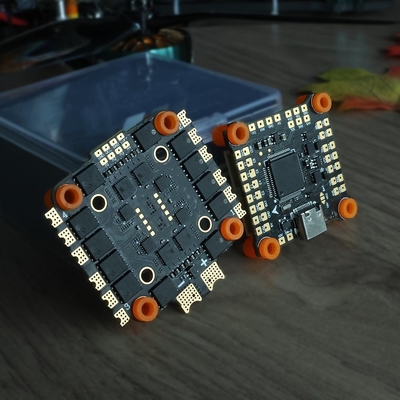

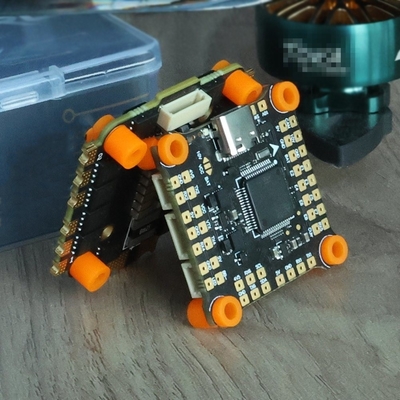

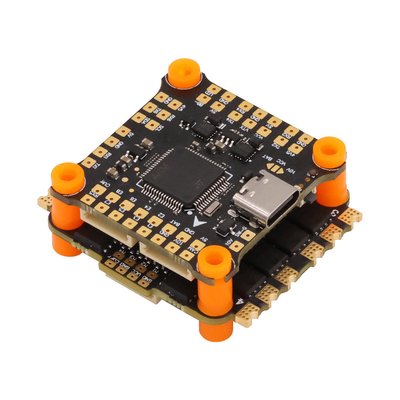

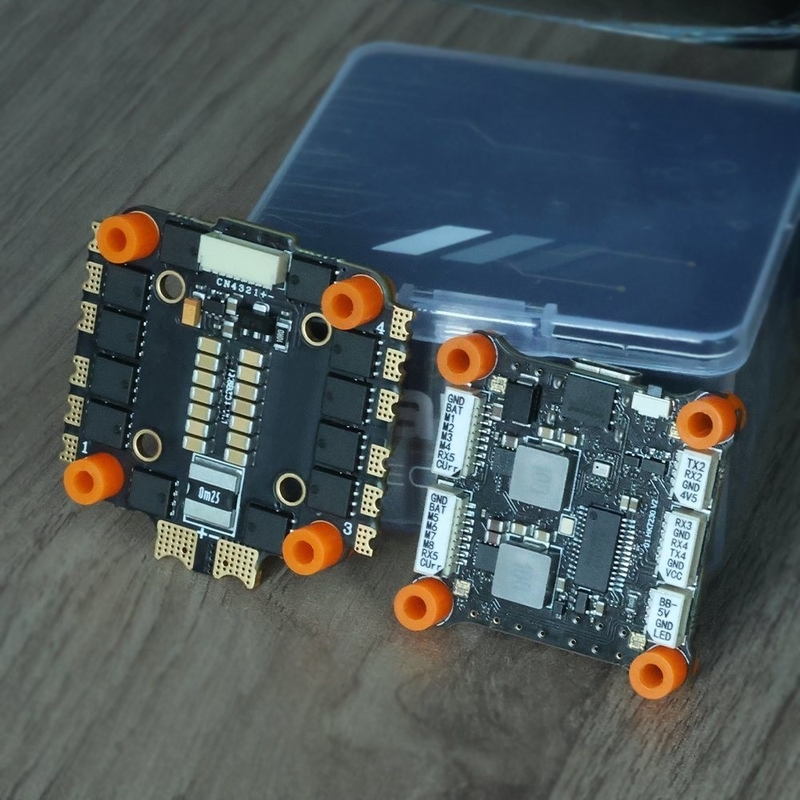

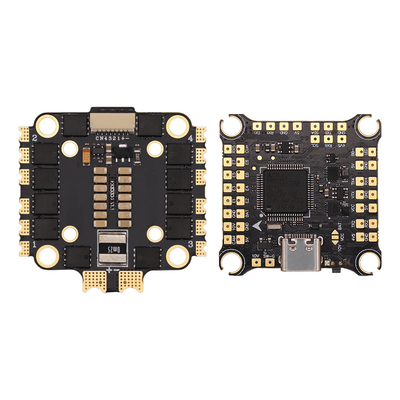

TTA FC&ESC Stack 50AF7 V2
FC&ESC Stack Net Weight: 23g
Packing weight: 71.5g
FC&ESC Stack input voltage: 2S-6S
Packing size: 64*64*35mm
Flight control specification size
Flight control size: 36x36mm
Flight control Net Weight: 8.5g
Mounting aperture: 30.5*30.5mm Φ4mm
Processor: STM32F722RET6
Gyroscope: ICM42688 dual gyroscope
BEC: 5V/3A; 10V/2.5A
Memory: 16MB
Input voltage: 2S-6S
Firmware: HAKRCF722V2
UART serial port: 6
Comes with four programmable color leds
Comes with 6P Sky Terminal
Electrical parameters
Electric adjustment size: 44mm*44mm
Electric adjustment Net Weight: 13.5g
Fixed hole spacing: 20/30.5mm-20/30.5mm Φ4mm
Continuous current: 45A
Max current: 50A (10s continuous)
Input voltage: 2-6S
Current ratio: 160
Software:BLHeliSuite16.7.14.9.0.3
Drive signal support:PWM,0neshot125,
Oneshot42,Multishot,Dshot150,
Dshot300,Dshot600
Parts List
M3 orange shock balls x8, 8P line x2, LED4P line x1,CRSF Receiver4p line x1, DJI6P connection line x1, capacitance
(35V470UF) x1, XT60 power supply x1, red and black power line x1, (M3X25mm screw) x4, black nut x4, black nut x4, black nut x4, DJI FPV Sky end three -in -one wiring x1, DJI 03AIR Unit three -in -one connection, instruction manual x1
·Support centimeter level positioning accuracy and data collection ·Meet all the requirements of the license examination.
·Artificial intelligence assisted training: providing intelligent analysis and standardized solutions for trainees' flight training; Equipped with free training, point selection training, level eight character training, point rotation assessment, level eight character assessment and other modes.
·Support drone simulation flight, with two flight modes: GPS and attitude.
·The drone has multiple data monitoring functions, including monitoring of on/off status information, geographic location information, real-time flight status information, and flight task information statistics. Thanks for your time and looking forward to cooperate with you!
Automatic spraying mode
Details Images.
WHY CHOOSE US?
COMPANY STRENGTH
EXHIBITION DISPLAY
FAQ
Q: 1.How to fly the drones?
A: There are operating manual and video to teach the operation. You can also come to our company for free training.
Q: 2.Are your drone waterproof?
A: Yes, the drone is waterproof.
Q: 3.Does your agriculture drone can set routes?
A: Yes, you can set routes and AB point on your computer and mobile phone through ground control station.
Q:4.What capacity drone do you have?
A:We have 5, 10 and 20kg payload.
Q:5.How many hectares can the drone can cover one day?
A:From 30-50 hectares, depends on the capacity.
Q:6.Can the drone spray the high trees?
A:Yes, we designed the fogger drone.
Q:7.Can the drone spray the fertilizers and seeds?
A:Yes. we designed the 20kg agriculture spreader drone.
Q:8.Does it have the FPV camera and light?
A:Yes.
Q: 9.Which flight controller do you use?
A: We have our own flight controller.
