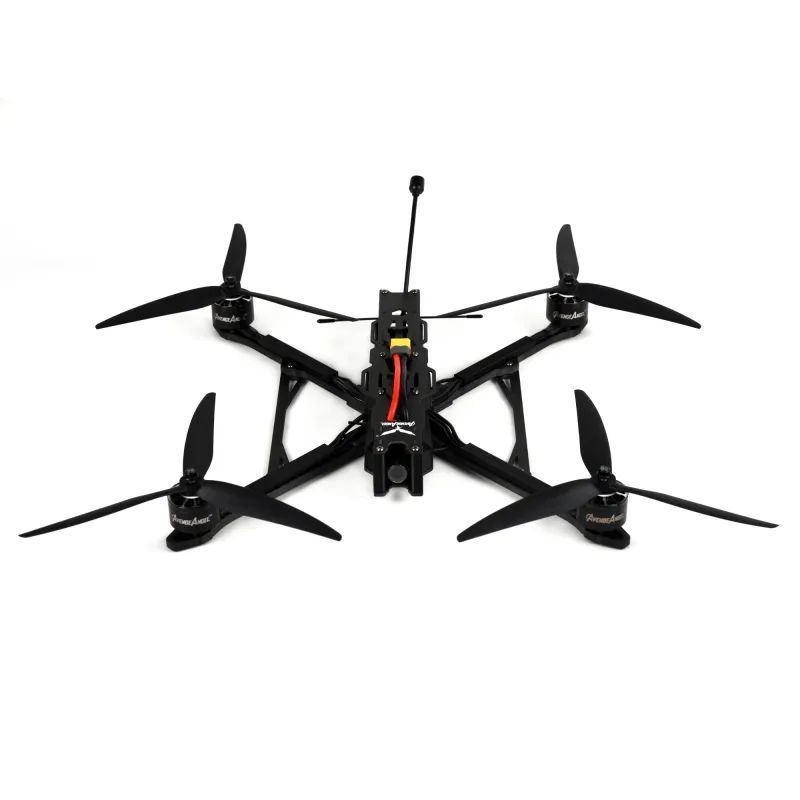

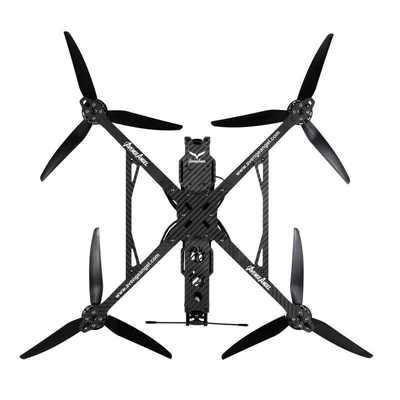

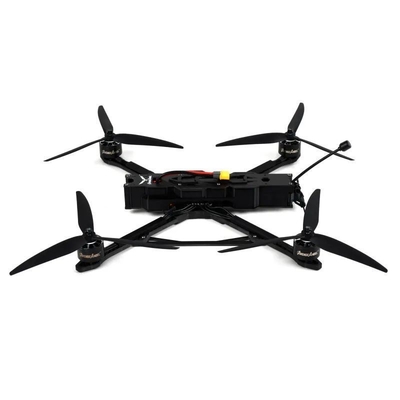

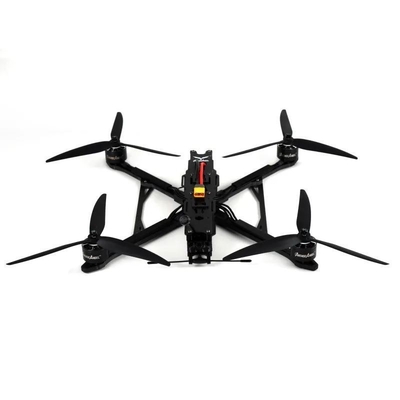

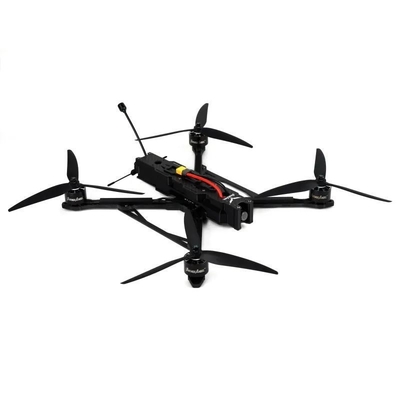

435mm Wheelbase Unmanned Aerial Vehicle UAV Sprayer Drone for Agriculture Crop Spraying
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Box Package |
| Delivery Time: | https://ttadrone.en.made-in-china.com/ |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 10000unit/Year |
|
Detail Information |
|||
| Model NO.: | MC-GP-GP10 | Power Supply: | Electric |
|---|---|---|---|
| Technics: | Screen Printing | Material: | TPU |
| Type: | Knapsack | Product Name: | Drone Sprayer |
| Usage: | Agriculture | Sprayer Type: | Unmanned Aerial Vehicle (Uav) |
| Video Outgoing-Inspection: | Provided | Rtk / Gnss Use Frequency Band Rtk: | GPS L1/L2, Glonass |
| Flight Duration: | 12000 W | Wheelbase: | 435mm |
| Key Selling Points: | High-Accuracy | ESC: | 60A ESC |
| Antenna: | 5.8g | Motor: | E3115 900kv |
| Maximum Wind Resistance Rating: | Level 8 | Transport Package: | Box Package |
| Specification: | MC-GP-GP10 | Trademark: | TTA |
| Origin: | China | HS Code: | 880022000 |
| Supply Ability: | 10000unit/Year | After-sales Service: | Engineers Available To Service Machinery Overseas, |
| Warranty: | 1 Year | Installation: | Internal Threaded Connection |
| Liquid Contained: | Medicine, Disinfector | Spraying Shape: | Sector |
| Volume: | >500ml | Samples: | US$ 599/Piece 1 Piece(Min.Order) | Request Sa |
| Customization: | Available | Customized Request | ||
Product Description
| Specifications | |
| Wheelbase | 435mm |
| ESC | 60A ESC |
| Image Transmission | RAD 2.5W |
| Antenna | 5.8G |
| Camera | H1 |
| Motor | E3115 900KV |
| Propeller | HQ 1045 |
| Maximum Wind Resistance Rating | Level 8 |
| Receiver | Elrs915 |
| Payload | 3kg |
| Work Temperature | -10°C-40°C |
| Recommended Battery | 6S 6000mAh-10000mAh XT90 plug |
| Flying Time | 10minutes |
Supply Ability
Supply Ability 500set/sets per Month
Packaging & Delivery
Packaging Details: Packed in professional aviation case
Port: Tianjin, Shanghai, ningbo, shenzhen
1. Newly designed 10-inch large rack to increase flight stability
2. High efficiency motor, takeoff load weight of about 3kg, maximum load of 4KG
3. Super long battery compartment
4. The first visual flight experience, precision flight
5. Maximum flight height 1000m
Features of MC-GP-GP10 Agricultural Drone UAV
Cloud service
RTK Accurate positioning
Flight log playback
Flow rate control
Multiple operation modes
Obstacle avoidance
Automatic spraying mode
RTK accurate positioning System
Accurancy:
Horizontal: ±1cm + 1ppm Vertical:±2cm + 1ppm
Function:
Make sure the field can be fully covered.
To avoid damage neighbour crop and pollution
One base station supports multiple drones work at same time
Double water pumps generate bigger pressure , max 4L/min adjustable flow rate.
Bigger inlet for you to fill in the chemical faster and no leaking.
Advanced flow meter makes the error of precise spraying within 2%.
Obstacle avoidance sensor
Equip front and back Obstacle avoidance sensor makes the drone has the ability to automatically detect obstacles to avoid unexpected crash and lose.
The GCS presents the distance from the obstacles at the same time.
Terrain following module
To make the drone has the ability to work on undulating crop field and make the spraying work much easier.
FPV camera
Real time video monitoring let you know detail information of drone and your crop situation !
Dual LED light. Support night flight!
Cloud service / Background management platform
For better management not only your drones but your spraying records !
Support real time monitoring of everything drone situation.
It will collect all the drones data include sprayed area, spraying location,
spraying log, etc.
Details Images.
WHY CHOOSE US?
HOT SELLING PRODUCTS
COMPANY STRENGTH
EXHIBITION DISPLAY
TRANSPORT EXPRESS
FAQ
Q: 1.How to fly the drones?
A: There are operating manual and video to teach the operation. You can also come to our company for free training.
Q: 2.Are your drone waterproof?
A: Yes, the drone is waterproof.
Q: 3.Does your agriculture drone can set routes?
A: Yes, you can set routes and AB point on your computer and mobile phone through ground control station.
Q:4.What capacity drone do you have?
A:We have 5, 10 and 20kg payload.
Q:5.How many hectares can the drone can cover one day?
A:From 30-50 hectares, depends on the capacity.
Q:6.Can the drone spray the high trees?
A:Yes, we designed the fogger drone.
Q:7.Can the drone spray the fertilizers and seeds?
A:Yes. we designed the 20kg agriculture spreader drone.
Q:8.Does it have the FPV camera and light?
A:Yes.
Q: 9.Which flight controller do you use?
A: We have our own flight controller.
