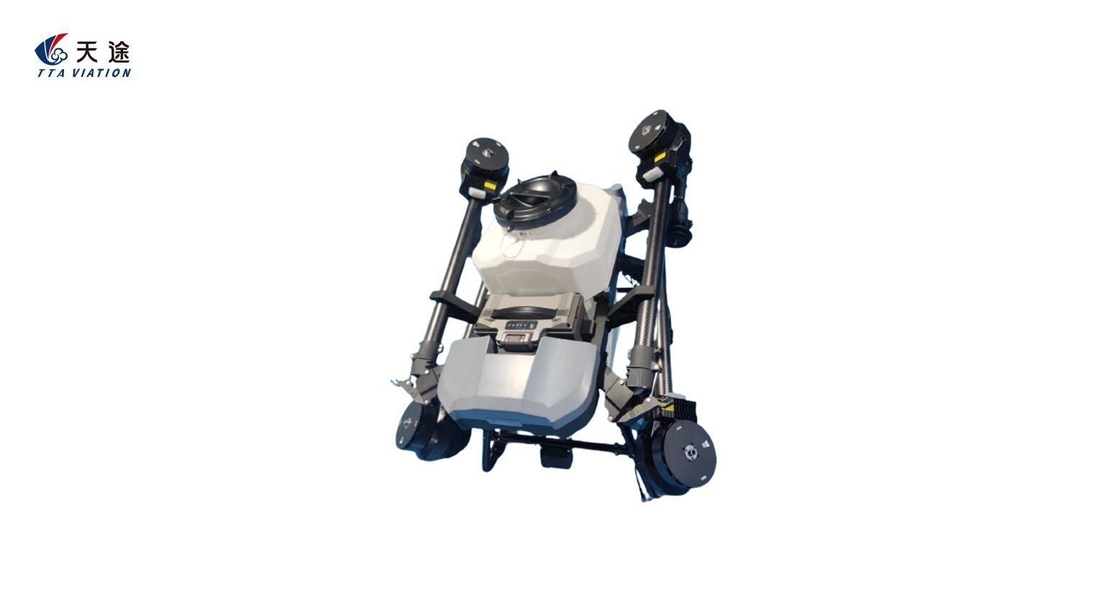

large payload agriculture sprayer drone M4E
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | TT AVIATION |
| Certification: | CE |
| Model Number: | M4E |
|
Detail Information |
Product Description
Technical data
| Model No. | M4E | |
| Tank Volume | 20L | |
| Empty Weight | 17.5KG | |
| Standard Take Off Weight | 45KG | |
| Flying | ||
| Full payload Flying Time | 15min | |
| Max Flying Time | <20min | |
| Flying Speed | 0-8m/s | |
| Flying Height | 2000m | |
| Landing approach | Vertical take-off and landing | |
| Anti-wind | <7m/s | |
| Positioning | GPS | |
| Spraying | ||
| Spray droplet diameter | 170-265μm | |
| Quantity of Nozzles | 4pcs | |
| Recommend Spray Speed | 6-8m/s | |
| Spray Width | 6-12M | |
| Spray Height | 2-4M above crop | |
| Battery | ||
| Power Capacity | 20000mAh-51.8V | |
Advantages of M4E :
The body is made of aviation aluminum alloy structure.Significantly reduce the weight of the fuselage.
- Automatic spraying mode
- RTK accurate positioning system
Accuracy:
Horizontal: ±10cm Vertical:±10cm
Function:
Make sure the field can be fully covered.
To avoid damage neighbour crop and pollution.
One base station supports multiple drones work at same time.
- Spraying system
Double water pumps generate bigger pressure , max 14L/min adjustable flow rate.
Auxiliary tank can prevent the reverse flow of water from spraying system to achieve more precise flow counting.
Auxiliary tank can prevent the reverse flow of water from spraying system to achieve more precise flow counting.
- Obstacle avoidance sensor
Equip front obstacle avoidance radar makes the drone has the ability to automatically detect obstacles to avoid unexpected crash and lose.
The GCS presents the distance from the obstacles at the same time.
- Terrain following module
To make the drone has the ability to work on undulating crop field and make the spraying work much easier.
- FPV camera
Real time video monitoring let you know detail information of drone and your crop situation !
●High Brightness LED Searchlight
For night work, more bright!
l Real time tracking the flight log from the GCS. And obviously to check where is sprayed and where is not according to the color.
- Seeding System
Broadcast width 6-15m, adjustable (height 3-5 meters), max speed 80KG/min,each hour can work 5-6hectares, spread particulate matter diameter 0.5-10mm dry solid particles
- Modular Design
Max payload 23L, adopts a large diameter feeding port, which greatly improves the feeding efficiency during operation!
- High Precision Weighting Module
Standard weighing sensor, real-time control of residual material!
- Dual Pump, High Precision Flowmeter
Maximum flow rate of a single pump 8L/ min.The accuracy of double tube flowmeter is less than 5%
