TTA M6E 10L Spraying Farm Multirotor Drone High Speed
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Box Package |
| Delivery Time: | https://ttadrone.en.made-in-china.com/ |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 10000unit/Year |
|
Detail Information |
|||
| Model NO.: | M10 | Power Supply: | Electric |
|---|---|---|---|
| Technics: | Screen Printing | Material: | TPU |
| Type: | Knapsack | Product Name: | Drone Sprayer |
| Usage: | Agriculture | Sprayer Type: | Unmanned Aerial Vehicle (Uav) |
| Video Outgoing-Inspection: | Provided | Rtk / Gnss Use Frequency Band Rtk: | GPS L1/L2, Glonass |
| Flight Duration: | 12000 W | Maximum Flight Speed: | 9m/S |
| Key Selling Points: | High-Accuracy | Work Flow: | 7L/Min*1 |
| Maximum Effective Take-off Weight: | 40 Kg (Horizontal) | Maximum Operating Flight Speed: | 7 M/S |
| Propeller: | 36 Carbon Plastic | Nozzle: | 8PCS |
| Diameter: | 160 Cm | Transport Package: | Box Package |
| Specification: | M10 | Trademark: | TTA |
| Origin: | China | HS Code: | 880022000 |
| Supply Ability: | 10000unit/Year | After-sales Service: | Engineers Available To Service Machinery Overseas, |
| Warranty: | 1 Year | Installation: | Internal Threaded Connection |
| Liquid Contained: | Medicine, Disinfector, Logistics | Spraying Shape: | Sector |
| Volume: | >500ml | Samples: | US$ 20000/Piece 1 Piece(Min.Order) | Request |
| Customization: | Available | Customized Request | ||
| Highlight: | Multirotor Drone,Drone Multi Rotor,Multi Rotor UAV |
||
Product Description
PRODUCTION DESCRIPTION

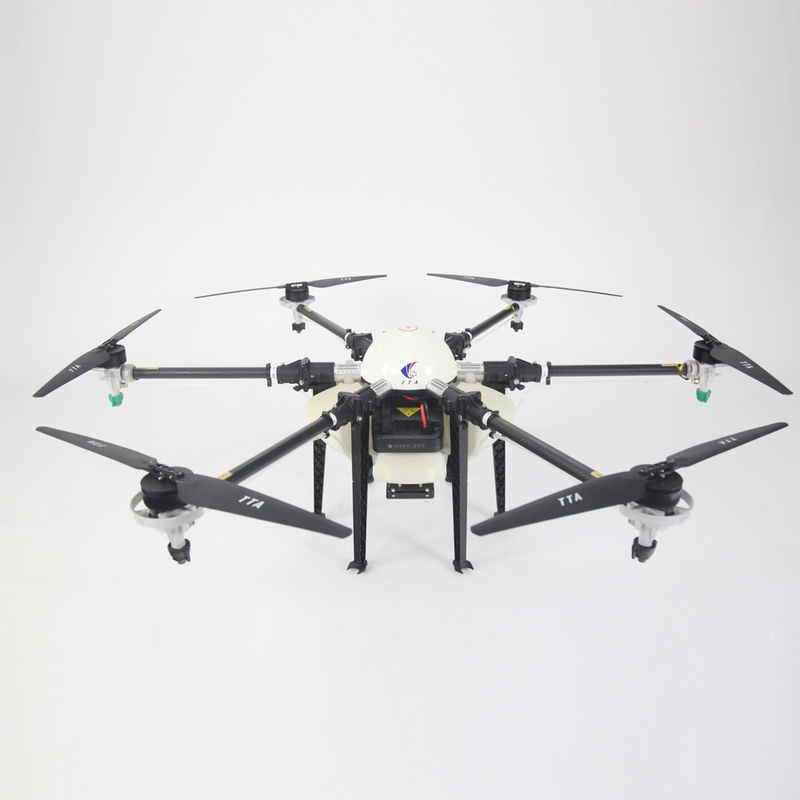

TTA M10 is a six-rotor multi-role networked UAV. Based on 4G/5G and cloud control platform
makes the measurement and control are not limited by distance any more. As a highly equipped
version of M10 series UAV, it forms a significant generation difference with M10 Lite through
multi-task load integration, which is convenient to meet the application needs of more customers and
scenarios. With its superior performance, M10 has been fully recognized and widely used by
customers in the fields of investigation, delivery, search and rescue, command, mapping, inspection,
logistics and so on.
Functional Characteristics
M10 adopts all-electric drive, six-rotor pneumatic layout, highly integrated and modular design. It
used high-strength carbon fiber materials, with streamlined design. The body and motor adopt
self-absorption heat dissipation structure, integrated high-precision differential GNSS positioning
device with TOF sensor, millimeter wave radar, FPV vision perception system and core sensors are
redundant backup make industry application more easy.
The whole copter is foldable, landing gear is quick release design, easy to carry.
Tiannong take the patent of newest generation foldable arm,easily damaged parts has been designed specially,
high toughness fiber material as the propellers, spare parts are much lower price.
*360°bicolor LED
Tiannong LED is a bicolor circle design, left and right are apparent, alarm for low power and empty liquid, easy to fly at night.
*Innovative liquid tank design
Add strainer at the bottom of the tank, bottom of the tank could be opened,easy to clean, agitator system is added,
protection from sediment and the uneven liquid, tank is desined for vibrate-resistant.
*Quick plug type intelligent integrated circuit design
Intelligent integrated circuit battery, handhold quick plug design, easy to change
*The whole copter is water-proof, it can be directly clean by water after spraying.
*Easy to maintain, even to repair it at the crop field. And lower maintain cost.
WHY CHOOSE US?
HOT SELLING PRODUCTS
COMPANY STRENGTH
EXHIBITION DISPLAY
TRANSPORT EXPRESS
FAQ
Q: 1.How to fly the drones?
A: There are operating manual and video to teach the operation. You can also come to our company for free training.
Q: 2.Are your drone waterproof?
A: Yes, the drone is waterproof.
Q: 3.Does your agriculture drone can set routes?
A: Yes, you can set routes and AB point on your computer and mobile phone through ground control station.
Q:4.What capacity drone do you have?
A:We have 5, 10 and 20kg payload.
Q:5.How many hectares can the drone can cover one day?
A:From 30-50 hectares, depends on the capacity.
Q:6.Can the drone spray the high trees?
A:Yes, we designed the fogger drone.
Q:7.Can the drone spray the fertilizers and seeds?
A:Yes. we designed the 20kg agriculture spreader drone.
Q:8.Does it have the FPV camera and light?
A:Yes.
Q: 9.Which flight controller do you use?
A: We have our own flight controller.
