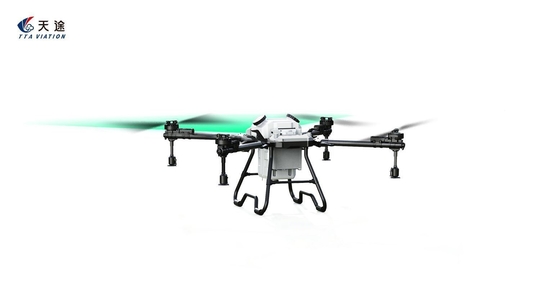

Unmanned Aerial Vehicle Uav 50L Tank TPU Crop Spraying Drone for Agriculture Farming
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Box Package |
| Delivery Time: | https://ttadrone.en.made-in-china.com/ |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 10000unit/Year |
|
Detail Information |
|||
| Model NO.: | M4E-G500 | Power Supply: | Electric |
|---|---|---|---|
| Technics: | Screen Printing | Material: | TPU |
| Type: | Knapsack | Product Name: | Drone Sprayer |
| Model: | M4e-G500 | Sprayer Type: | Unmanned Aerial Vehicle (Uav) |
| Usage: | Agriculture | Video Outgoing Inspection: | Provided |
| Tank Volume: | 50L | Empty Weight: | 34.8kg |
| Full Payload Flying Time: | 8-10min | Flying Height: | 2000m |
| Flying Speed: | 0-8m/S | Transport Package: | Box Package |
| Specification: | M4E-G500 | Trademark: | TTA |
| Origin: | China | HS Code: | 880022000 |
| Supply Ability: | 10000unit/Year | After-sales Service: | Engineers Available To Service Machinery Overseas, |
| Warranty: | 1 Year | Installation: | Internal Threaded Connection |
| Liquid Contained: | Medicine, Disinfector | Spraying Shape: | Sector |
| Volume: | >500ml | Samples: | US$ 10999/Piece 1 Piece(Min.Order) | Request |
| Customization: | Available | Customized Request | ||
Product Description
TTA Brand UAV Farming Agricultura Drone Crop Spraying Drone 50L Tank 98KG Spreading Payload Dual Atomized Spraying System
| Name of commodity | Image | Remarks |

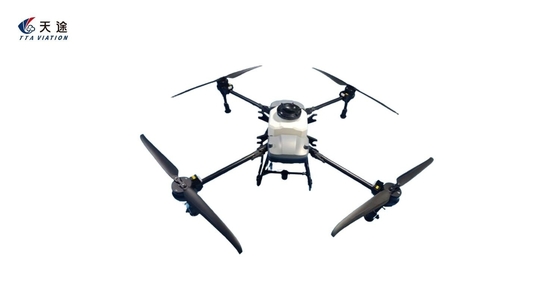

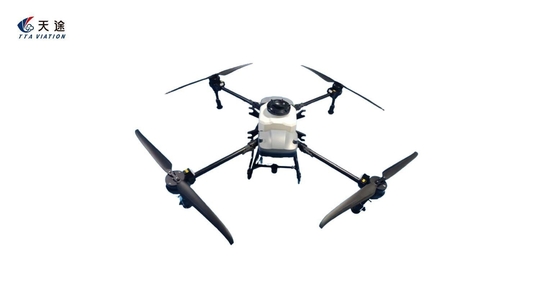

4 rotors UAV |  | fuselage, arms, motors, propellers, electronic speed controllers |
Spraying equipment | | Micro pump / Flow meter / pesticide tank / nozzles/ |
APAR(Active Phased Array Radar) | | 360-degree obstacle avoidance radar |
| Water Pump | | 2pcs |
Package | | Carton Box |
Remote controller | | 5.5-inch HD high brightness display Single-axis FPV |
Battery/2pcs included in package | | 1pc battery/flight 2 pcs in one CTN: 37.5*30*37 cm (L*W*H) G.W:28Kg |
18S Charger | | Dual channels 37.5*32.5*31.5cm(L*W*H) G.W: 13Kg |
| Assemble tools | 1 bag |
Supply Ability 500set/sets per Month
Packaging & Delivery
Packaging Details: Packed in professional aviation case
Port: Tianjin, Shanghai, ningbo, shenzhen
Mode 1:
Preset the working route on GCS ,find your crop field on Google Map, the route will automatically appear. The start point,the final
point and the working direction can all be set.
Mode 2:
Import Kml file directly ,
the route will automatically appear. The start point, the final point and the working direction can all be set.
Mode 3:
Quick scanning mode:
Operator only need to set A and B point and give the drone a
direction order then the drone will fly and spray
automatically. Easy to shorten or extend the AB point distance during flying to adapt irregular shape
Preset the working route on GCS ,find your crop field on Google Map, the route will automatically appear. The start point,the final
point and the working direction can all be set.
Mode 2:
Import Kml file directly ,
the route will automatically appear. The start point, the final point and the working direction can all be set.
Mode 3:
Quick scanning mode:
Operator only need to set A and B point and give the drone a
direction order then the drone will fly and spray
automatically. Easy to shorten or extend the AB point distance during flying to adapt irregular shape
Technical data
| Model No. | M4E-G500 |
| Tank Volume | 50L |
Work Efficiency | 14~40 hectare/ hours |
Empty Weight | 34.8KG |
Standard Take Off Weight | 98KG |
Max Take Off Weight | 105KG(Within 1,000 meters above sea level) |
RTK/GNSS Frequency | RTK: GPS L1/L2, GLONASS F1/F2,BeiDou B1/B2, Galileo E1/E5 |
Hover Accuracy | Horizontal: ±10 cm Vertical: ± 10 cm |
| Flying | |
| Full payload Flying Time | 8-10min |
| Max Flying Time | <20min |
| Flying Speed | 0-8m/s |
| Flying Height | 2000m |
| Landing approach | Vertical take-off and landing |
| Anti-wind | <7m/s |
| Positioning | GPS&RTK |
| Spraying | |
| Spray droplet diameter | 50-500μm |
| Quantity of Nozzles | 4pcs |
| Recommend Spray Speed | 6-8m/s |
| Spray Width | 6-12M |
| Spray Height | 2-4M above crop |
| Battery | |
| Power Capacity | 30000mAh-60.9V |
| Weight | 13.2KG |
| Discharge Rate | 5C |
| IP | IP67 |
Main Features
Features of M6E-G300 Agricultural Drone UAV
Cloud service
RTK Accurate positioning
Flight log playback
Flow rate control
Multiple operation modes
Obstacle avoidance
Automatic spraying mode
RTK accurate positioning system Accuracy:
Horizontal: ± 1cm + 1ppm Vertical: ±2cm + 1ppm
Function:
Make sure the field can be fully covered.
To avoid damage neighbour crop and pollution.
One base station supports multiple drones work at same time.
Features of M6E-G300 Agricultural Drone UAV
Cloud service
RTK Accurate positioning
Flight log playback
Flow rate control
Multiple operation modes
Obstacle avoidance
Automatic spraying mode
RTK accurate positioning system Accuracy:
Horizontal: ± 1cm + 1ppm Vertical: ±2cm + 1ppm
Function:
Make sure the field can be fully covered.
To avoid damage neighbour crop and pollution.
One base station supports multiple drones work at same time.
Spraying system Obstacle avoidance sensor
Terrain following module

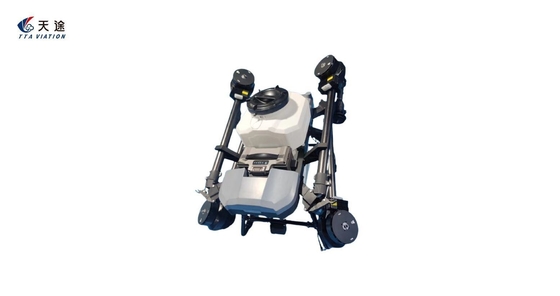

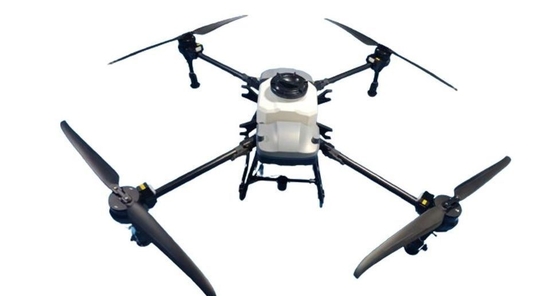

Details Images.
WHY CHOOSE US?
HOT SELLING PRODUCTS
COMPANY STRENGTH
EXHIBITION DISPLAY
FAQ

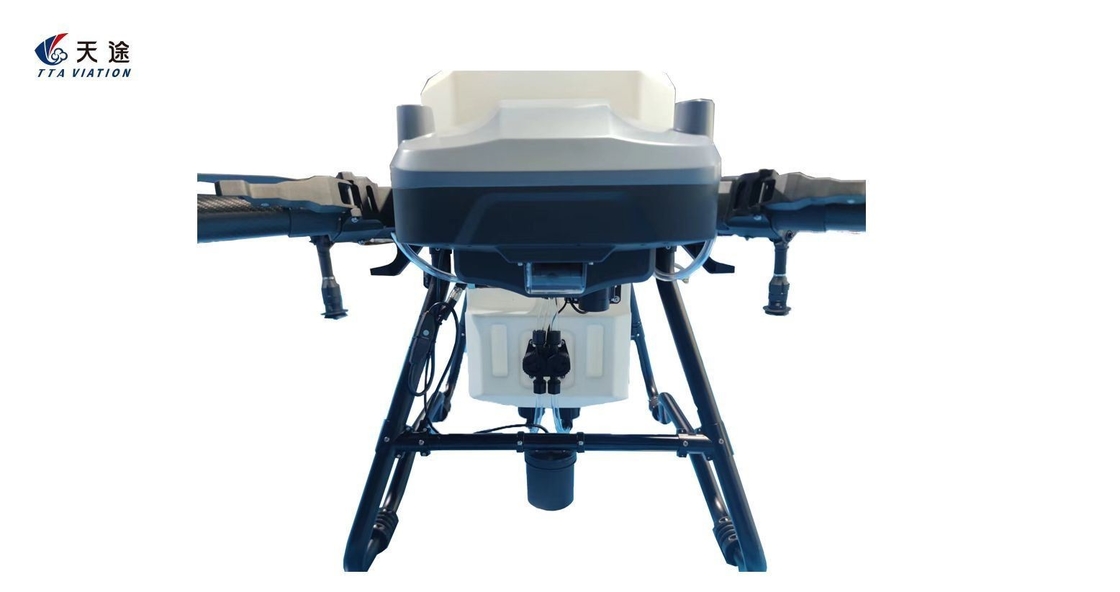

Double water pumps generate bigger pressure , max 24L/min adjustable flow rate.
Auxiliary tank can prevent the reverse flow of water from spraying system to achieve more precise flow counting.
Equip 360 degree omnidirectional obstacle avoidance radar makes the drone has the ability to automatically detect obstacles to avoid unexpected crash and lose.
The GCS presents the distance from the obstacles at the same time. Terrain following module
To make the drone has the ability to work on undulating crop field and make the spraying work much easier.
Single-axis FPV camera
Controllable pitch Angle ± 45 ° , necessary for aircraft operation!
Real time video monitoring let you know detail information of drone and your crop situation !
Dual Pump, High Precision Flowmeter
Dual Pump, High Precision Flowmeter
Maximum flow rate of a single pump 14L/ min. The accuracy of double tube flowmeter is less than 5%
Precheck and After-check
You can review the detail performance of the drone by flight log playback function and also can view the flight route ! Which allow you to check your drone in details before flying and check the mission records after flight.
Details Images.
WHY CHOOSE US?
HOT SELLING PRODUCTS
COMPANY STRENGTH
EXHIBITION DISPLAY
FAQ
Q: 1.How to fly the drones?
A: There are operating manual and video to teach the operation. You can also come to our company for free training.
Q: 2.Are your drone waterproof?
A: Yes, the drone is waterproof.
Q: 3.Does your agriculture drone can set routes?
A: Yes, you can set routes and AB point on your computer and mobile phone through ground control station.
Q:4.What capacity drone do you have?
A:We have 5, 10 and 20kg payload.
Q:5.How many hectares can the drone can cover one day?
A:From 30-50 hectares, depends on the capacity.
Q:6.Can the drone spray the high trees?
A:Yes, we designed the fogger drone.
Q:7.Can the drone spray the fertilizers and seeds?
A:Yes. we designed the 20kg agriculture spreader drone.
Q:8.Does it have the FPV camera and light?
A:Yes.
Q: 9.Which flight controller do you use?
A: We have our own flight controller.
If still have some questions, please dont hesitate to contact me
